The car-grade and special-type TFT display series is a high-end product category that Xin Hongtai HOTLCD has specially designed for automotive electronics and special industries. In recent years, with the rapid development of technology and intelligence of automotive electronics, various car companies are constantly changing the size of the central control display from monochrome to color. The size of the color screen ranges from a minimum of 3.5 inches to a current maximum of 12.3 inches. The control of the central control panel is getting more and more, and the full LCD display instrument panel will gradually become the "core configuration" of the car.
Xin Hongtai HOTLCD can provide 10.1 inch, 10.3 inch, 12.3 inch three long strip high-resolution car display screens, and later will develop more large-size car-class special display.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

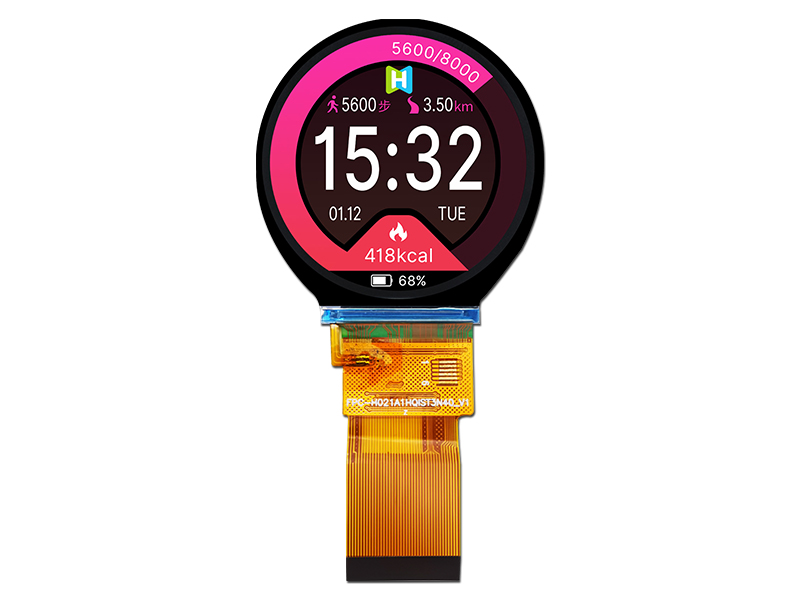

| 2.1inch TFT LCD Display Round , 480×480 Px, IPS,ST7701S/TFT-H021A2HQIST3C40 | TFT Round | 480x480 |
|
56.18x59.71x2.26 | 2.1 | 2.1 | 53.28x53.28 | Full view | 550cd/m2 | FPC-40PIN | RGB | Anti-static ESD 8KV | -20~70℃ | 3.3v | ST7701S+CTP/FT3267 | |
| 1.3''TFT square/240*240 Resolution/TFTTFT-H013A2QQIST3N10 | TFT Strip | 240x240 |
|
26.00×29.15×1.95 | 1.3 | 1.3 | 23.4x23.4 | Full view | 350cd/m2 | FPC-10PIN | SPI | -20~70℃ | 2.8V | ST7789H2 | ||
| 1.3 inch TFT |320x320 hd | TFT - H013A1HQIST3N16| MIPI | Circular TFT | 320x320 |
|
36.12x39.16x1.50 | 1.3 | 1.3 | D=33.12 | Full View | 350cd/m2 | FH12-16S-0.5SH | MIPI | -20~70 C | 2.8V | ST7796DW | ||
| 1.54 inch / 240*240 resolution/perspective/highlight/Wide temperatureTFT-H015C1QQIST6N35 | TFT LCD | 240x240 |
|
31.52x33.72 | 1.54 | 1.54 | 27.72x27.72 | 全視角 | 600cd/m2 | FPC-35PIN | MCU | Anti-static ESD 8KV | -20~70℃ | 3.3V | ST7789H2 | |
| 4.0 inch 86 special TFT screen box/480 * 480 resolution/whole perspective TFT - H040A1PVIST3N40 | TFT strip | 480x480 |
|
78.8x81.7x2.2 | 4.0 | 4.0 | 71.86x70.18 | Full View | 300cd/m2 | 40pin | RGB | RGB16/18bit +SPI | -20~70℃ | 3.3V | ST7701S | |
| 4.0''TFT/480*800Resolution/tft-h040a3wvtnt0n30 Projector | TFT LCD | 480x800 |
|
55.44x93.9x1.190 | 4.0 | 4.0 | 51.84x86.4 | 12H | FPC-30PIN | RGB | RGB 18 bit + SPI | -20~70℃ | 2.8v | |||
| 2.1inches Round TFT LCD|320*320dots|TFT-H021BN315B | TFT Round | 320x320 |
|
58.78x64.38x2.13 | 2.1 | 2.1 | Full view | 600cd/m2 | FPC-20PIN | MIPI | Valuable | -20~70℃ | 2.8v | HX8357-D | ||
| 3.4 inches Round TFT LCD|800*800DOTS|TFT-H0340A1 | Round TFT LCD | 800x800 |
|
96.6x99.0x2.45 | 3.4 | 3.4 | φ87.60 | Full view | 500cd/m2 | FPC-39PIN | MIPI | Expensive | -20~70℃ | 3.3v | ILI9881C | |
| 4.8‘’Mono TFT/400*240 Image resolution/MONO TFT/HTT048A01 | MONO TFT | 400x240 |
|
110.2x73.7x4.0 | 4.8 | 4.8 | 105.0x63.4 | 6H | 500cd/m2 | FPC-20PIN | MCU | MOQ:10K | -20~70℃ | 3.3v | ||
| 6.2寸MonoTFT/640*320Image resolution/High contrast/HTM062A02 | TFT mono | 640x320 |
|
165.4x92.4x5.8 | 6.2 | 6.2 | 140.0x70.0 | orange | 20PIN1.0 | MCU | 1000:1 Contrast | -20~70℃ | 3.3V | ST7511 |
